Floor Angle Guide

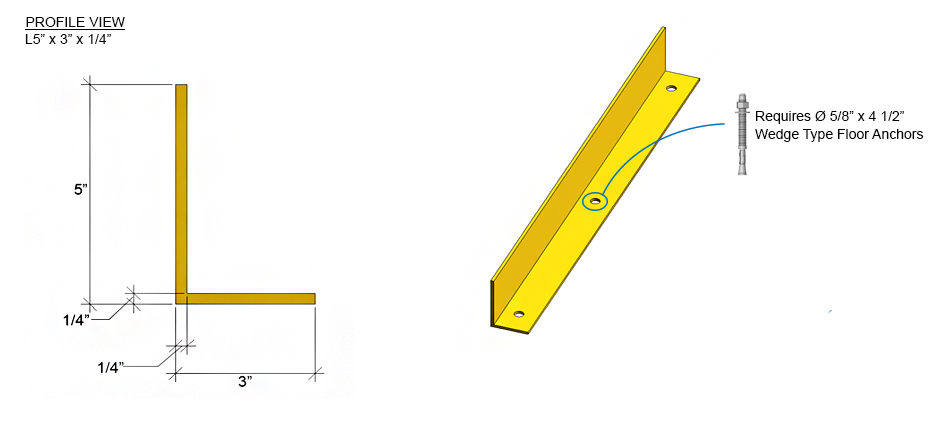

Floor angle guide provides continuous, uninterrupted protection low to the ground. Acts as a barrier to prevent narrow-aisle fork trucks, lifts and order pickers from damaging storage racks, which in turn, keeps assets intact. Floor angle is made of 5”x3”x1/4” thick structural steel and is powder-coated safety yellow for maximum visibility. Standard lengths are 12”, 24”, 36”, 42”, 48”, 60”, 96” and 120”. Custom lengths are also available to meet specific requirements. Angle is punched with ¾” ø holes, evenly spaced for floor anchors. The number of holes varies depending on the length of the angle. Floor guide is anchored to concrete using 5/8”øx4½” wedge bolt anchors.

Limited Lifetime Warranty

Floor Angle Guide

  • Click here to download Printer Friendly Summary (PDF).

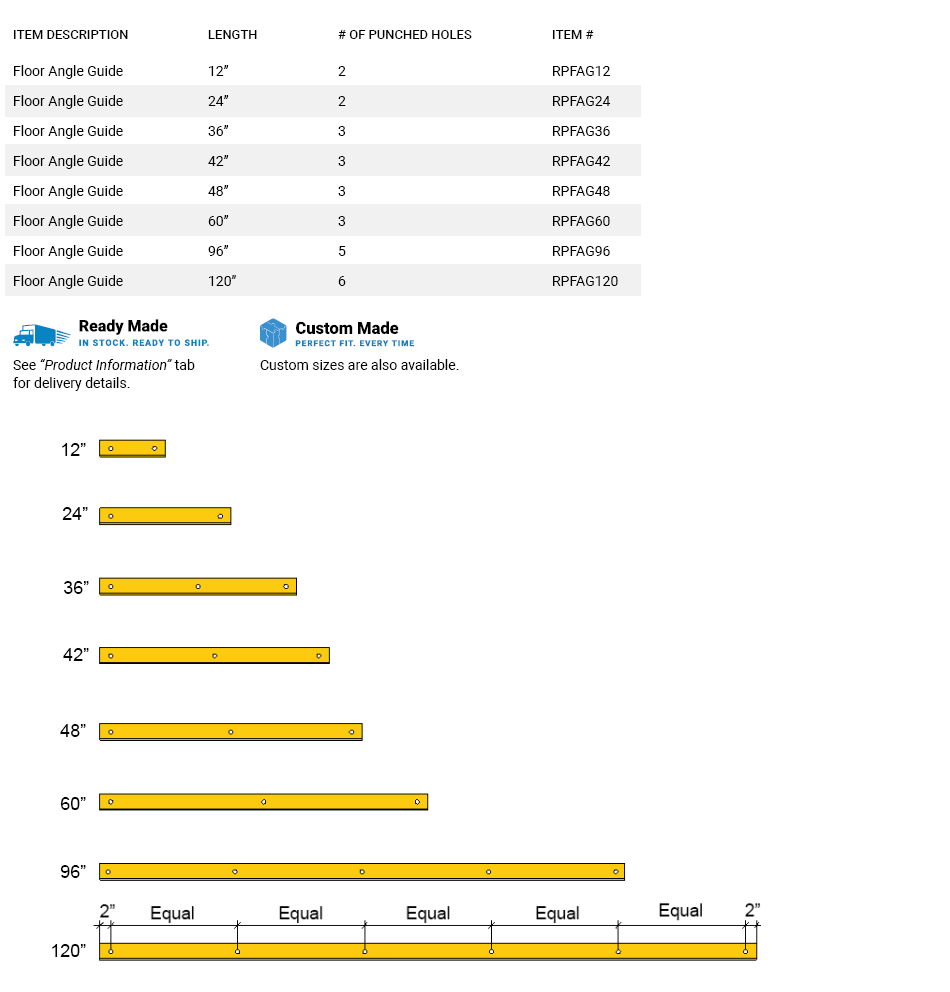

Please consult the table below for a complete list of dimensions.
